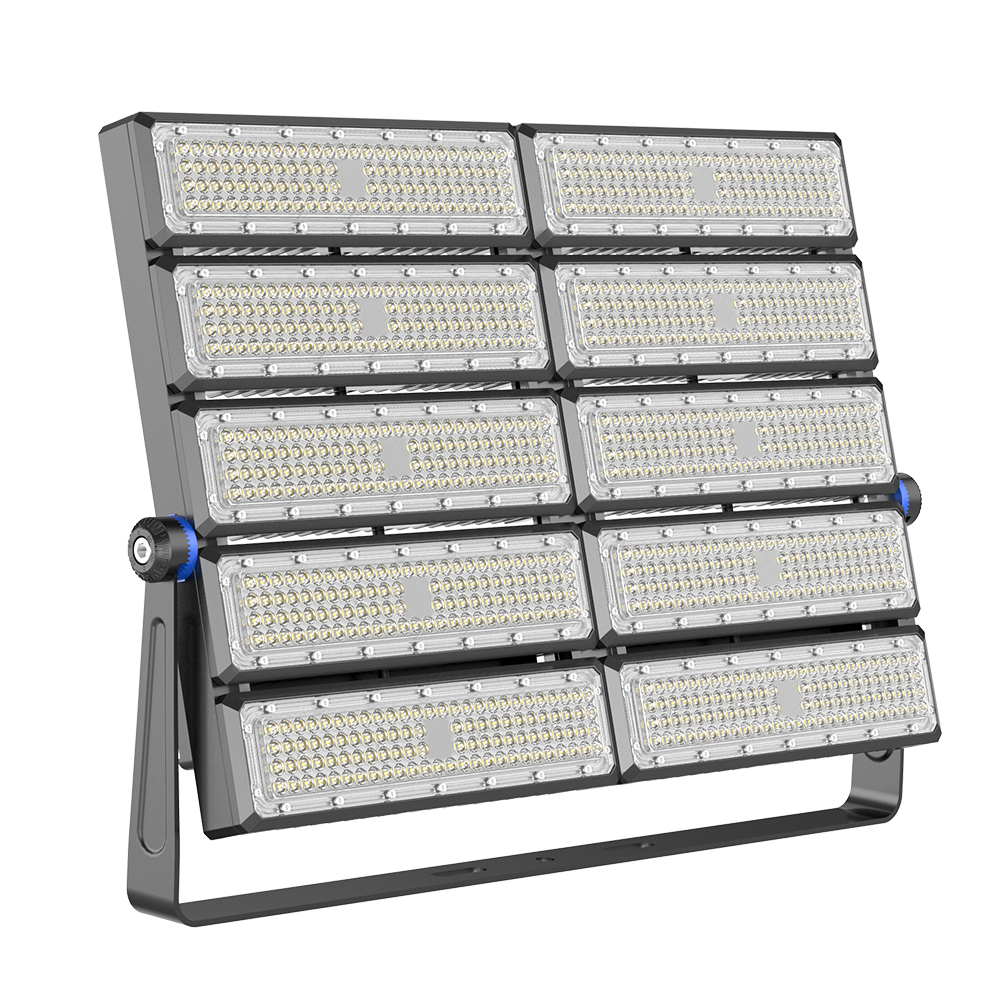

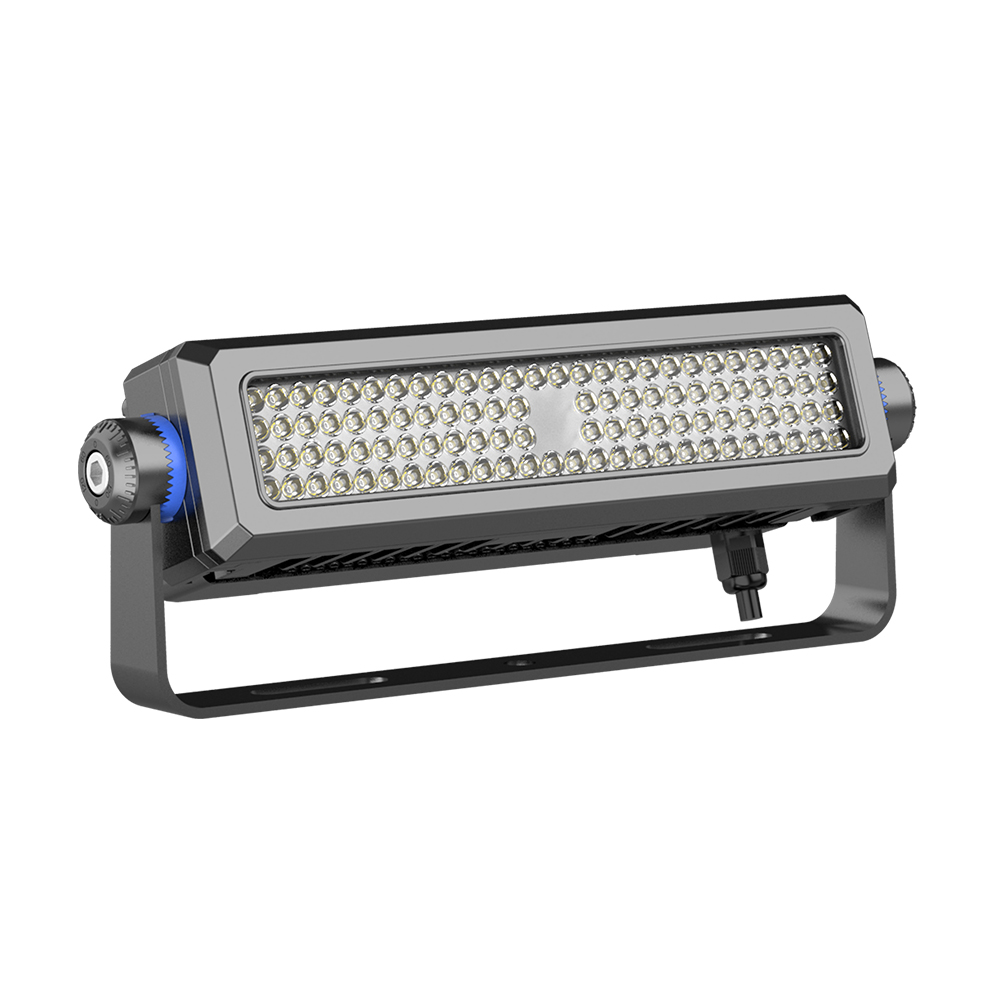

LED Module Tunnel Lights Fixtures Floodlight Supplier

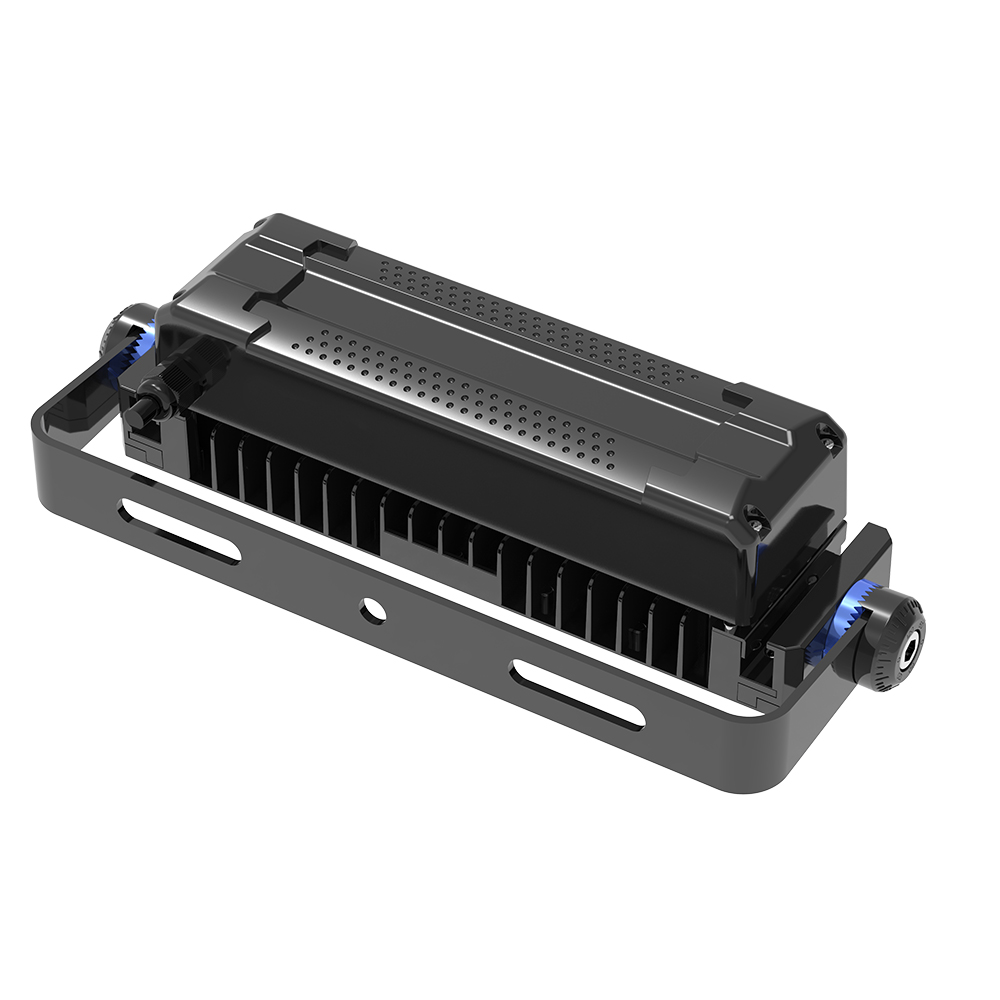

  • Die Casting Heat sink: Excellent Thermal Management & Compact Structure.
  • Optional Polycarbonate Lenses provide high impact resistance IK08, Light transmittance up to 94%, and multiple lighting distributions: 10/25/45/60/90/20*50/30*70/80*140 .
  • Racked Angle, Angle Adjustable 180, Achieving Precise Installation.
  • 4mm thickness arm & brackets, anti-typhoon rating 17.
  • External 10KV SPD, provides extra surge protection.
  • Ingress Protection Rating: IP66 Operation Temperature: -35~+50
  • Glass Cover Option: Can be Applied in Harsh Environment.

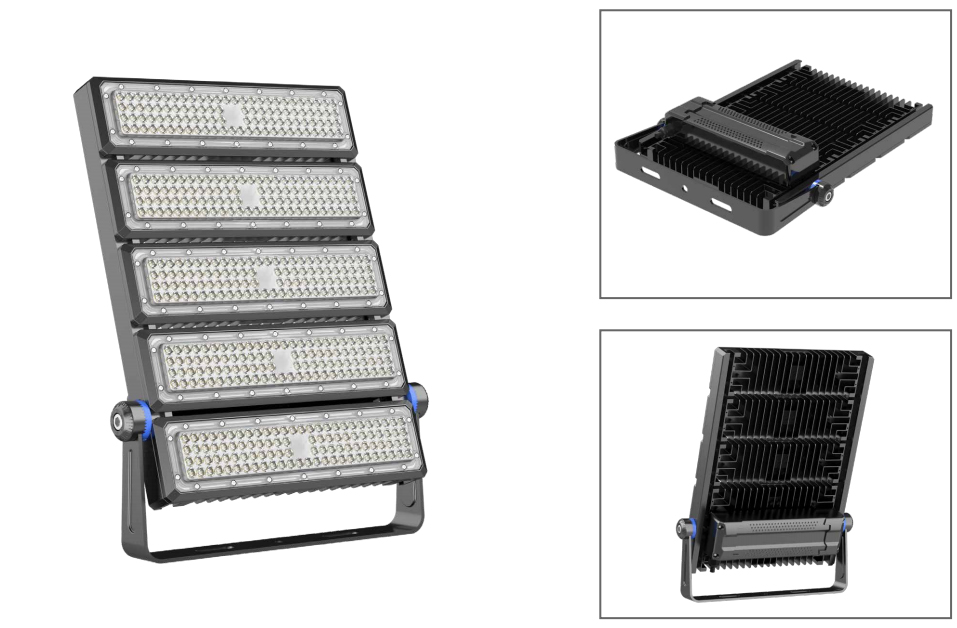

Features Display

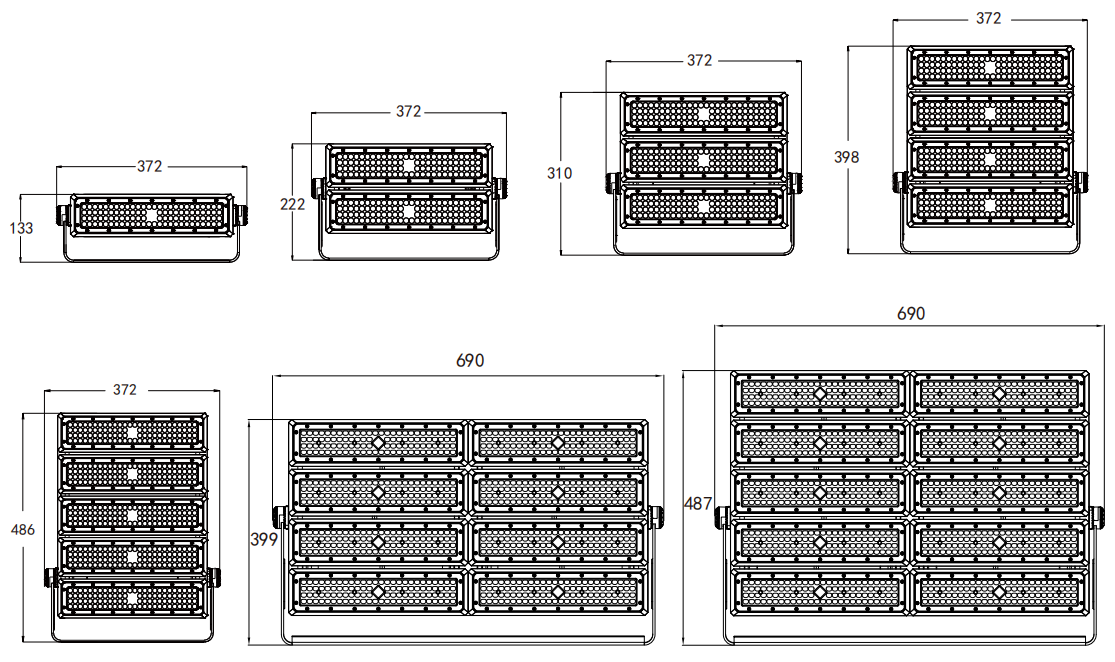

Dimension Drawing

Parameters

Parameters
LED Chips Lumileds 3030 / RA>70
Input Voltage AC100-277V
Color Temperature 4500~5500K (2500~5500K Optional)
Beam Angle 60°/ 90°
IP & IK IP66 & IP69K / IK10
Driver Brand E-Lite Driver
Power Factor 0.95 minimum
THD 20% Max
Dimming / Control 0-10V(optional)
Housing Material Non-toxic corrosion resistant aluminum
Work Temperature -30°C ~ 45°C / -22°F~ 113°F
Mount Kits Option Hang Ring

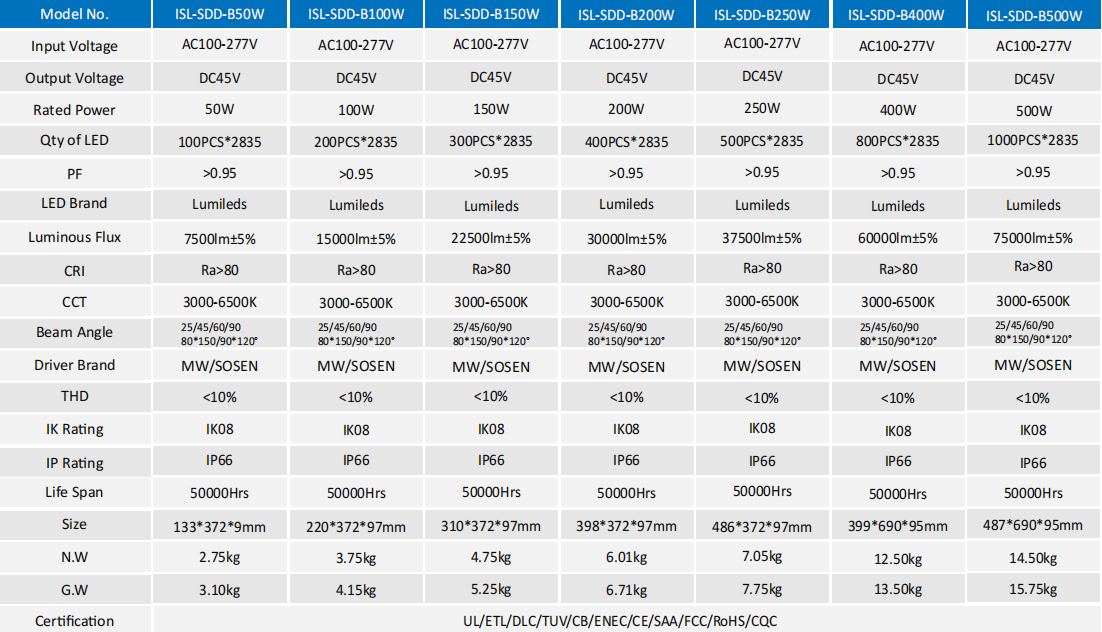

Specification

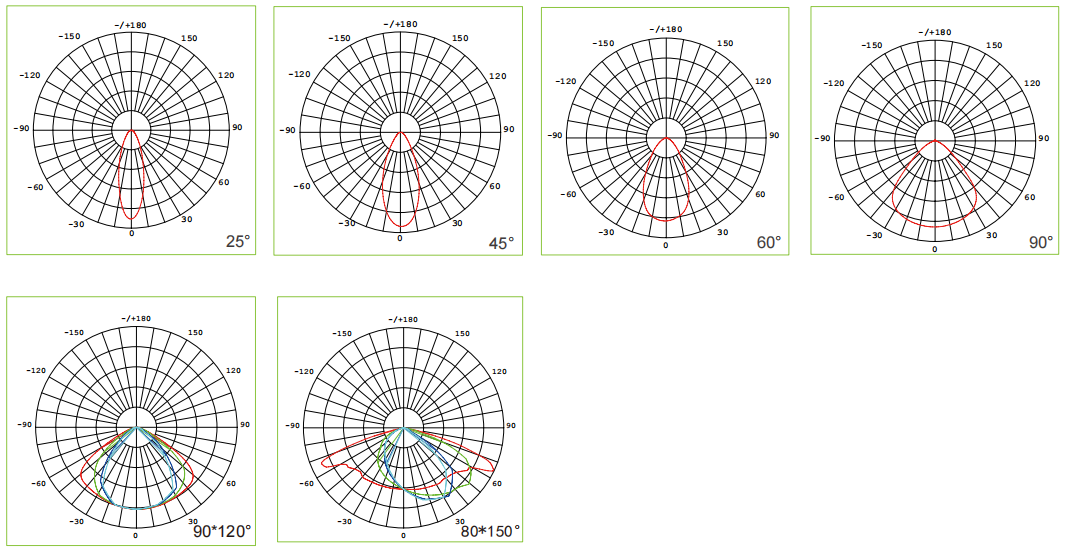

Photometry

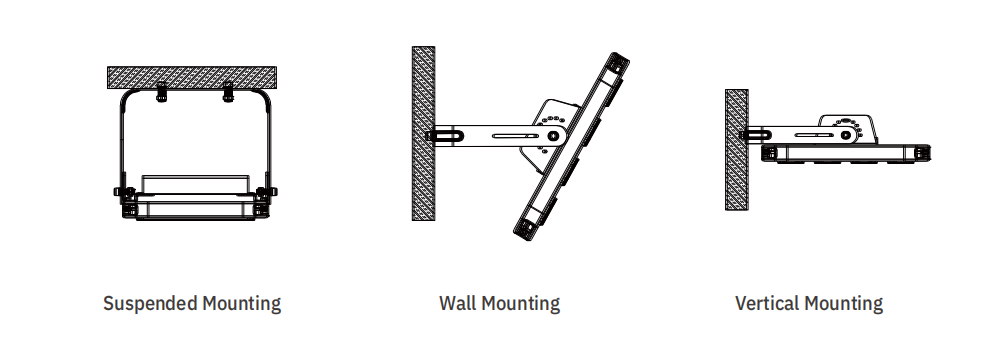

Installation

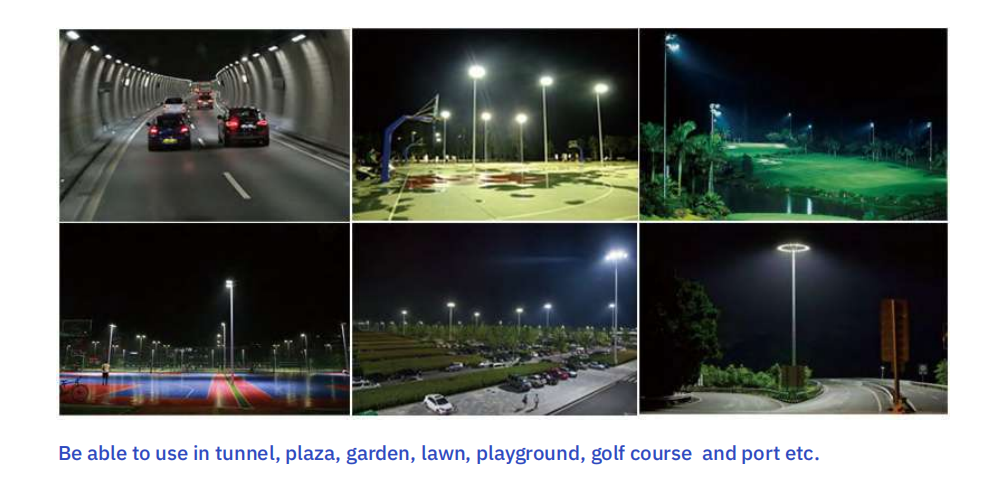

Application
